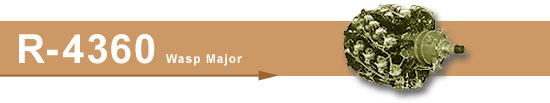

Pratt & Whitney R-4360
Engine Specifications
| Type: |
28 cylinder air cooled |
| Diameter: |
55 inches |
| Length: |
96.50 inches |
| Bore: |
5.75 inches |
| Stroke: |
6 inches |
| Displacement: |
4363 cubic inches |
| Compression Ratio: |
6.7 to 1 |
| Dry Weight: |
3482 to 3870 lbs. |
| Low/High Blower Gear Ratios: |
N/A |
| Ignition: |
4 Scintilla S14RN-15 low tension |
| Carburation: |
Stromberg PR-100B3 |
| Fuel Grade: |
108/135 octane |
Performance:
|
Take-off: 3500 hp @ 2700 rpm wet
3250 hp @ 2700 rpm dry
Normal: 2650 hp @ 2550 rpm
Max Continuous: 2840 hp @ 2550 rpm |
|
